HTL Hybrid Hooftrimming Crush

Photo of Hybrid Hooftrimming Crush

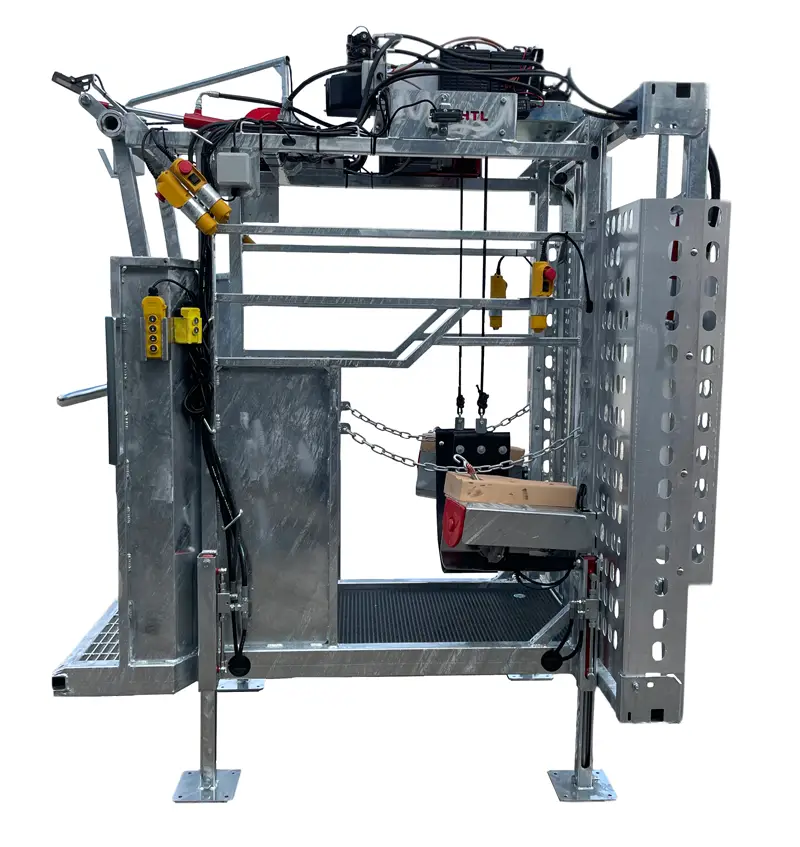

Another photo of Hybrid Hooftrimming Crush

The HTL Hybrid Hooftrimming Crush provides the perfect combination between hydraulic and electric, ensuring advanced cow and trimmer comfort along with the sought-after lift system. From the hydraulic Texas style head gate, through to the hydraulic back bar and with five electric hoists for the legs and bellyband lift, this crush combines maximum safety with ease of use and high through-put. The added advantage of the market-leading hydraulic lift system takes this crush and your trimming to a whole new level! Check valves ensure the stability and safety of the crush when lifted, with flow dividers guaranteeing an even and reliable lift. The large diameter tubing on the head gate increases cow comfort and the fully opening exit means there are no obstacles to manoeuvre over on the way out. The hydraulic controls allow this gate to be feathered to suit the smallest of heifers up to the largest cows. The wide rubber bellyband folds nicely around the cow and is located to ensure a comfortable support position. The hydraulically operated, over-sized spring assisted back bar sweeps down behind the cow and holds hind legs firmly but comfortably. The extended floor to the rear and the rear leg deflectors increases the safety of the operator and prevent the cow being able to step outside of the crush. Rear gate catches allow you to latch gates to the crush to provide a continuous funnel for loading, with optimum cow flow.

Features and Benefits

  • 300mm hydraulic lift
  • Strong, ergonomically designed, galvanised steel frame construction
  • Texas style hydraulic head gate
  • Electric rear leg lift
  • Rear rump chain
  • Hydraulic back bar
  • Rubber flooring at the front and flow-forge rear
  • Electric front leg lifts with wooden leg support blocks
  • Side plates
  • Rear leg deflectors
  • Gate latches
  • 2 x IP56 single 3-pin electrical outputs
  • Wide rubber bellyband with electric hoist system



Technical Specification

Maximum External Dimensions

  • 1.9 metres long
  • 1.6 metres wide
  • 2.3 metres high (2.6 metres when lifted)

1.7 metres internal height / 725mm internal width
Weight = Approx. 750kgs
Voltage: 220/240v



    Optional Extras

      Industrial metal structure with hooks and cables

      Grinder Holder / Swing Over Arm

      This arm allows the operator to plug in and hang their grinder up safely and move it around the crush with them, eliminating the need for extension cables or trailing wires.

      Mounted LED floodlight on metal structure

      Work Lights

      An LED work light above each foot aids visibility and increases operator safety.

      Brass boat trailer bow rest design.

      W-Bar

      This W-shaped bar attaches onto the back bar. It reduces movement and stops kick back, ensuring user safety when trimming with a grinder.

      Hoof trimming remote control with button labels.

      Radio Control

      A long range wireless radio control means you can operate the head gate, back bar and lift using one remote.
