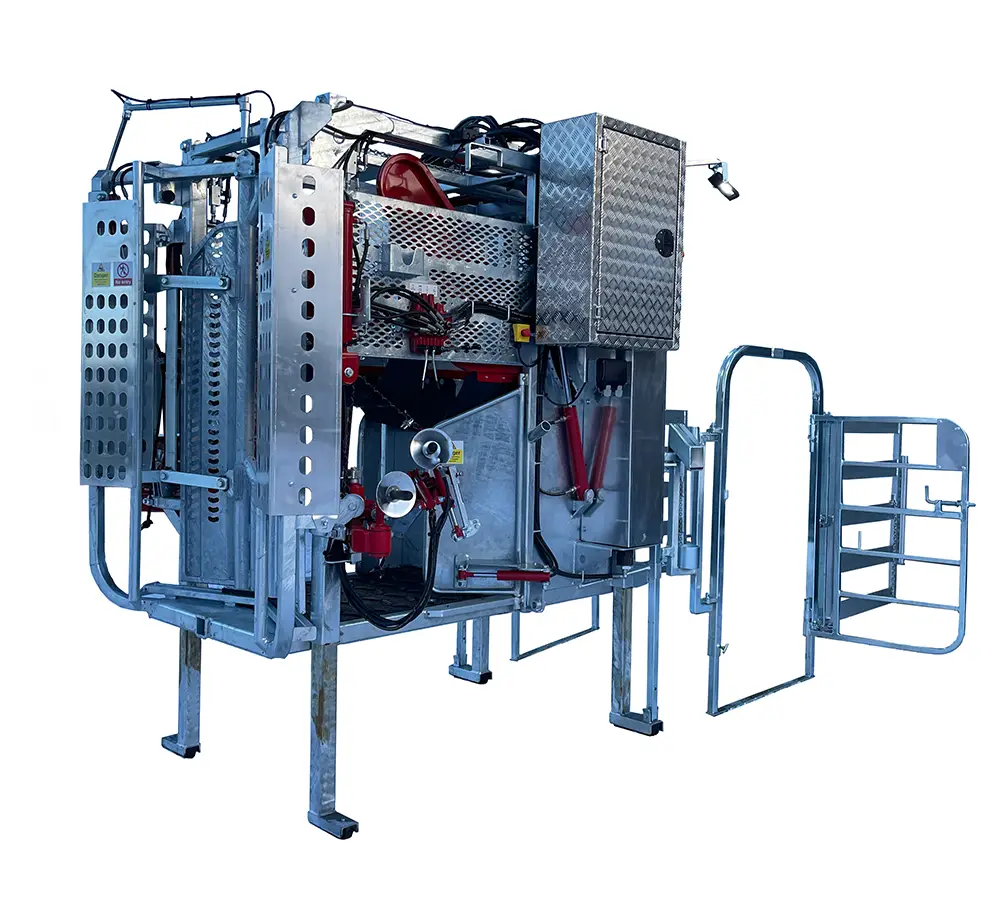

HTL Pro Hooftrimming Crush

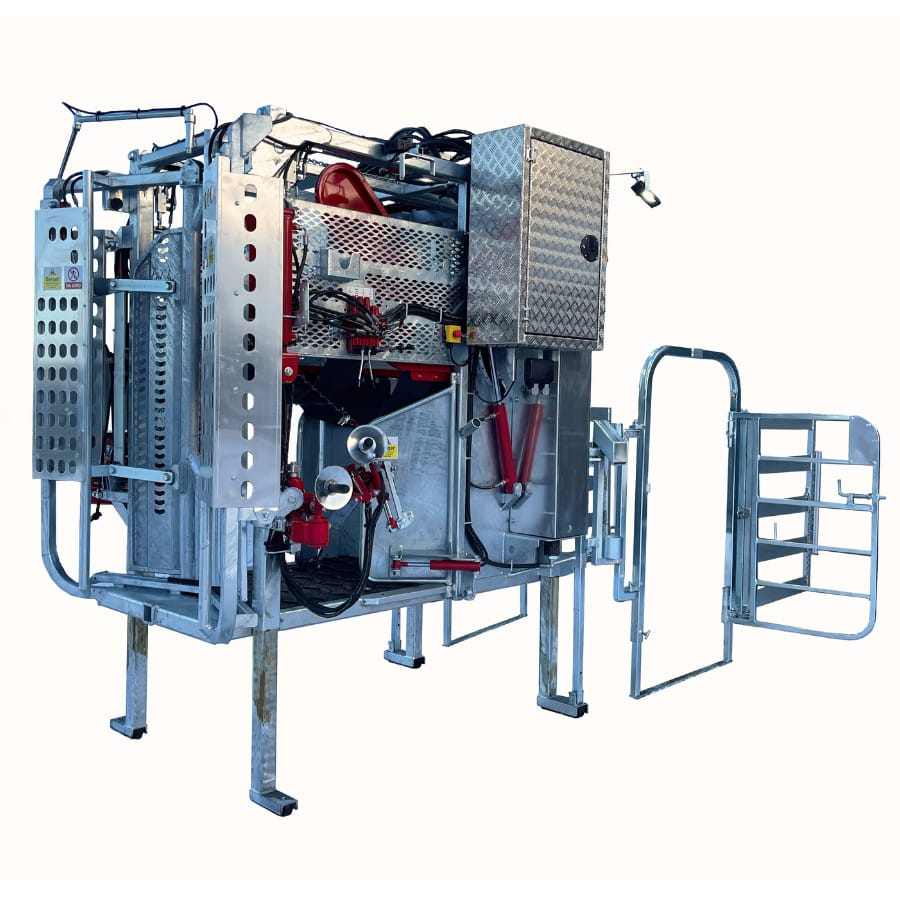

Industrial cattle handling equipment on white background.

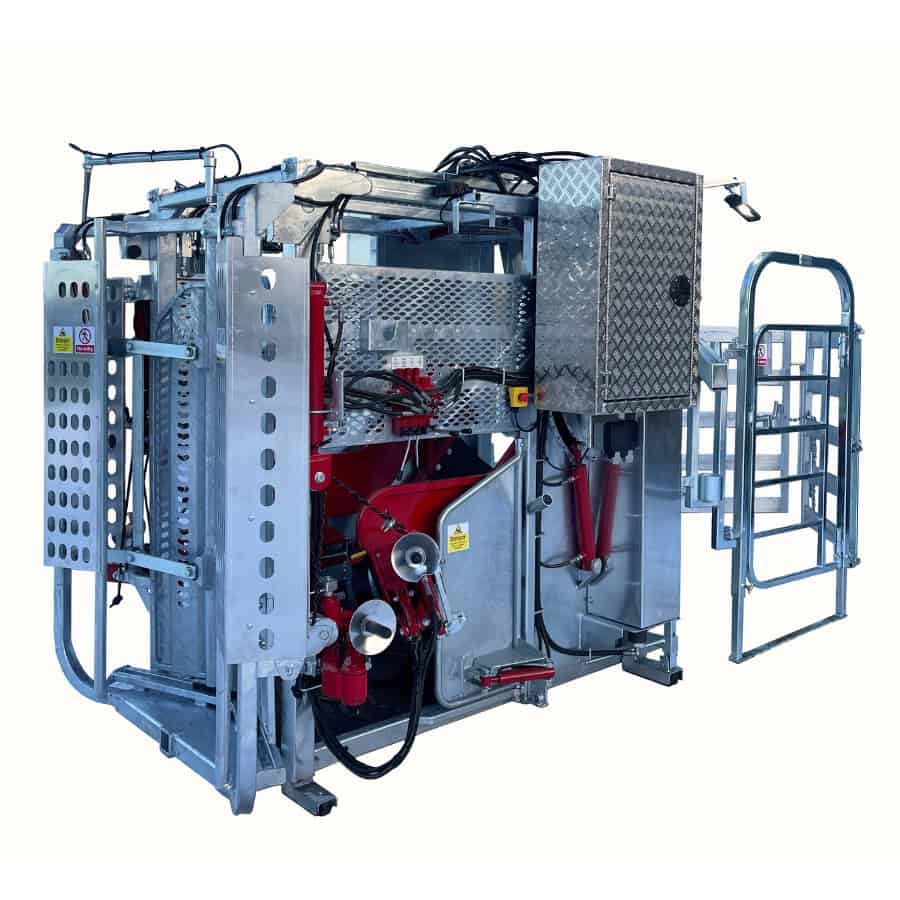

Heavy-duty animal handling equipment

Evolving from the revolutionary original HTL design, the HTL Pro Hooftrimming Crush combines innovative technology, exceptional performance and a compact, practical design to meet the demands of professional hooftrimmers.

Engineered for animal comfort, operator safety and maximum productivity, the HTL Pro handles cattle of all sizes with ease, delivering excellent throughput even in the busiest operations.

Its low-profile, virtually ground-level entry encourages natural loading and improved cattle flow. An 8-function radio remote control comes as standard, allowing safe, flexible operation from a distance. Optional automatic sequencing further enhances efficiency, positioning and supporting the animal ready for trimming within seconds. Hydraulic front leg clamps provide smooth, controlled positioning at the optimum working angle, whilst hydraulic bellyband arms offer secure, comfortable support.

For added versatility, the bespoke, UK IVA-certified HTL transport trailer enables quick and easy transportation, whilst integrated, removeable wheels allow effortless manoeuvrability around the yard.

Compact, powerful and exceptionally versatile, the HTL Pro delivers the performance and reliability demanded by professional hooftrimmers.

Features and Benefits

  • Strong, ergonomically designed, galvanised steel frame construction
  • Angled, hydraulic Texas head gate with large tubing
  • Hydraulic front leg clamps
  • Wide rubber bellyband on lift arms
  • Kick plates
  • Back bar with W-bar
  • Lift system with check valves and flow dividers for an even and reliable lift
  • 8-function radio control
  • 24V LED work lights



Technical Specification

Maximum External Dimensions (With No Optional Extras)

  • 2.1 metres long
  • 1.2 metres wide
  • 2.1 metres high

1.7 metres internal height / 720mm internal width
Weight = Approx. 350kgs



    Optional Extras

      Remote for Pros

      Sequencing

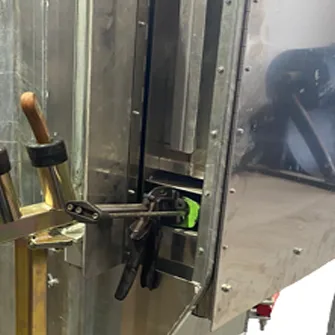

      Heater Box

      Heater box for Blockitt Pro 200 and STD & XL Blocks

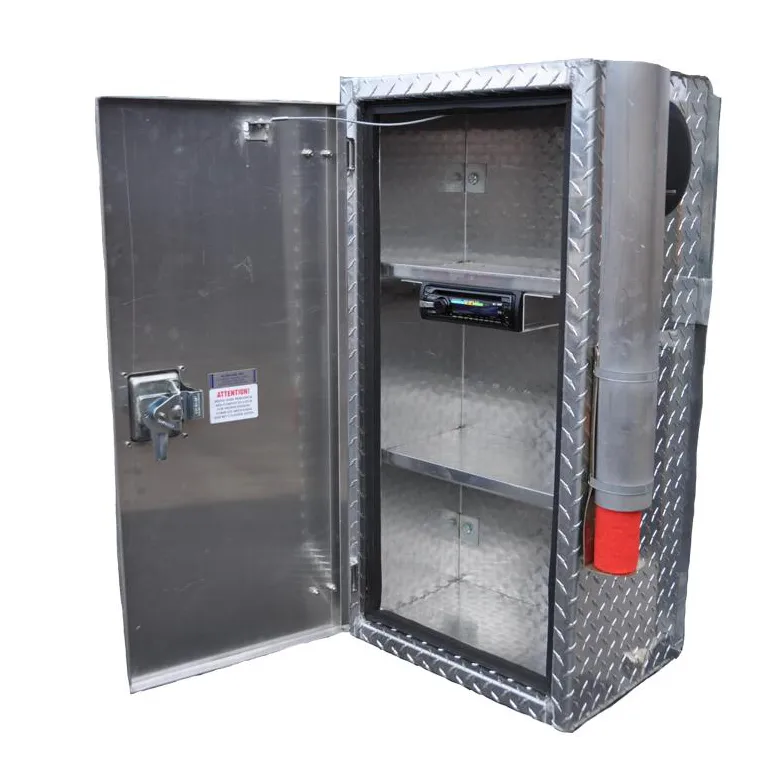

      Open metal storage cabinet with shelves

      Storage cabinet

      Pioneer car stereo with digital display and controls.

      MP3 Radio with speaker and aerial

      Nod gates (walk through gates)

      Pair of two hinged nod-gates with walk-through sections

      Red agricultural machinery with metal components.

      Hoof stabiliser bar for front leg clamps

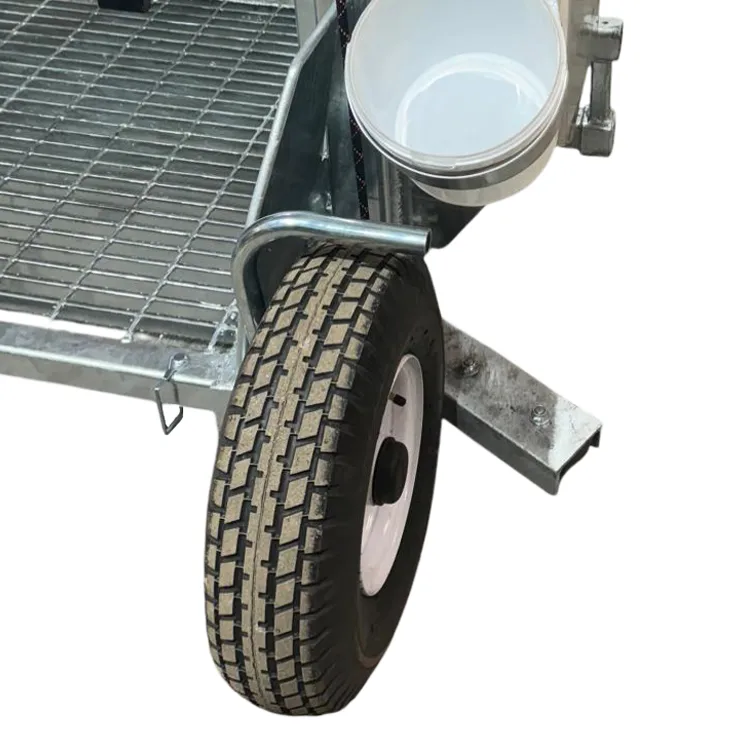

      Transport wheels for Pro

      Loading wheels and a steering dolly

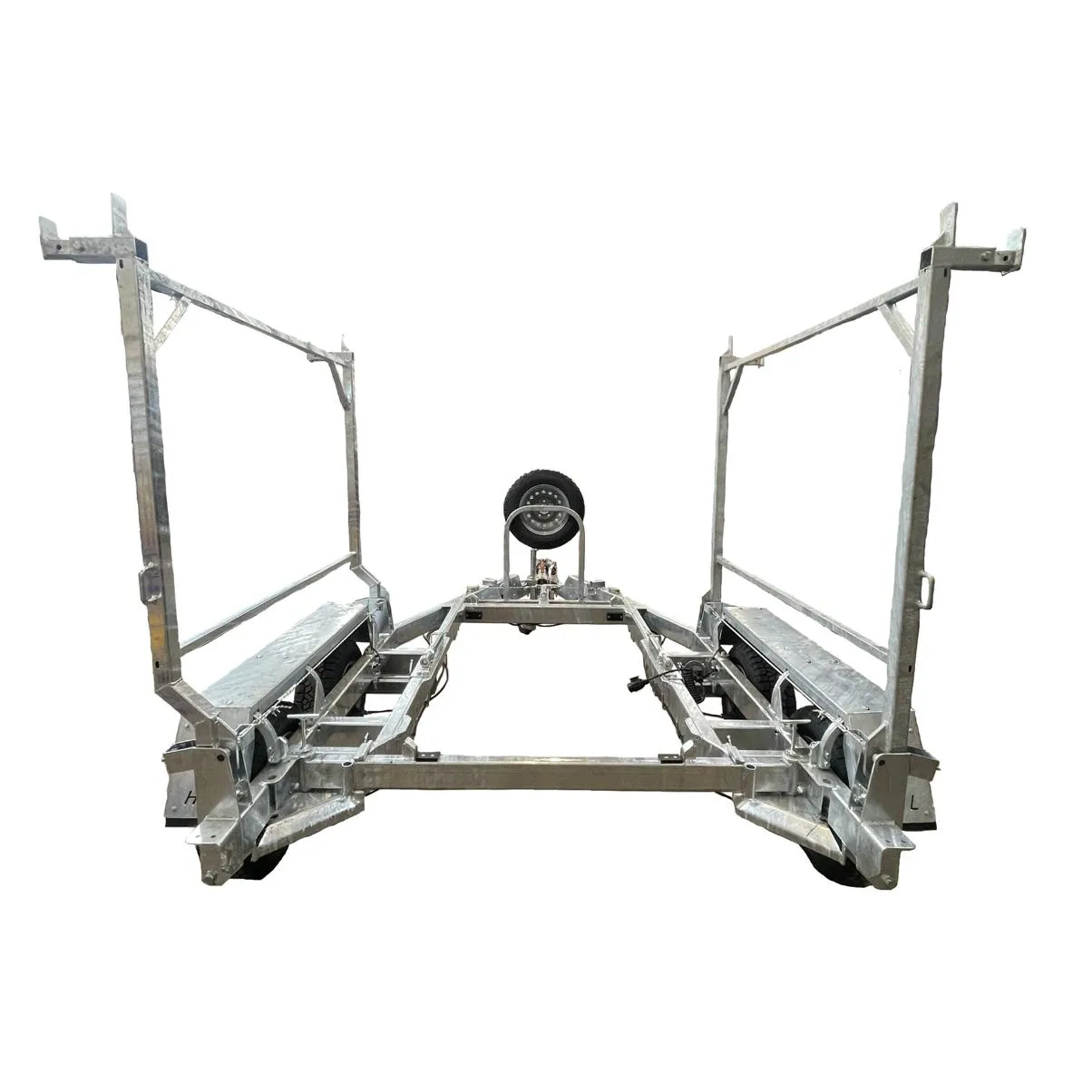

      Trailer packed away

      Bespoke HTL Pro U-shaped trailer with UK IVA

      Trailer packed away

      Gate racks on trailer

      Metal bracket with two rubber grommets

      Knife holders

      Close-up of industrial machine with metal components.

      Bandage holders

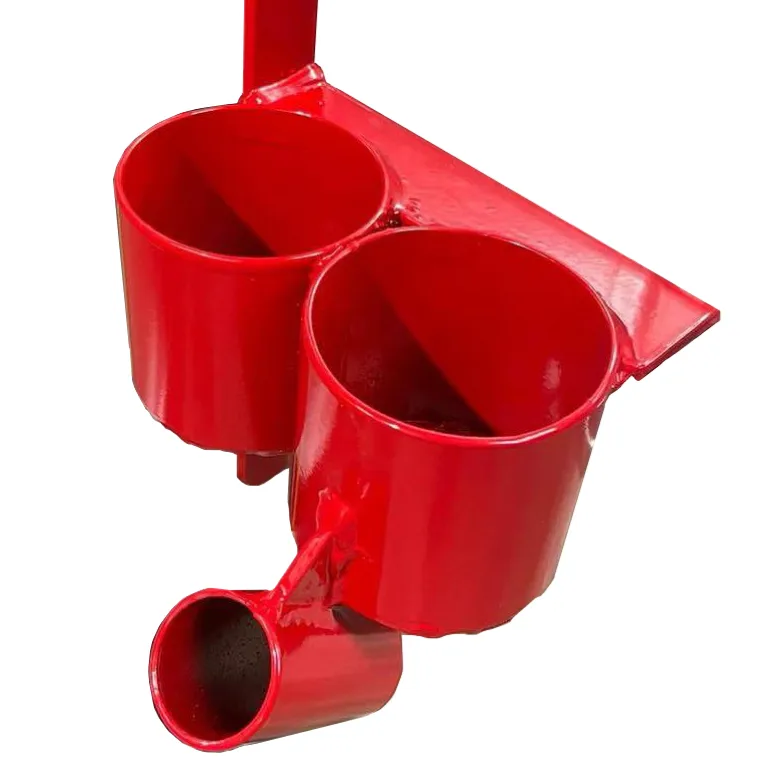

      Spray can and grinder holder

      Spray can and grinder holders
