Crushes and Handling

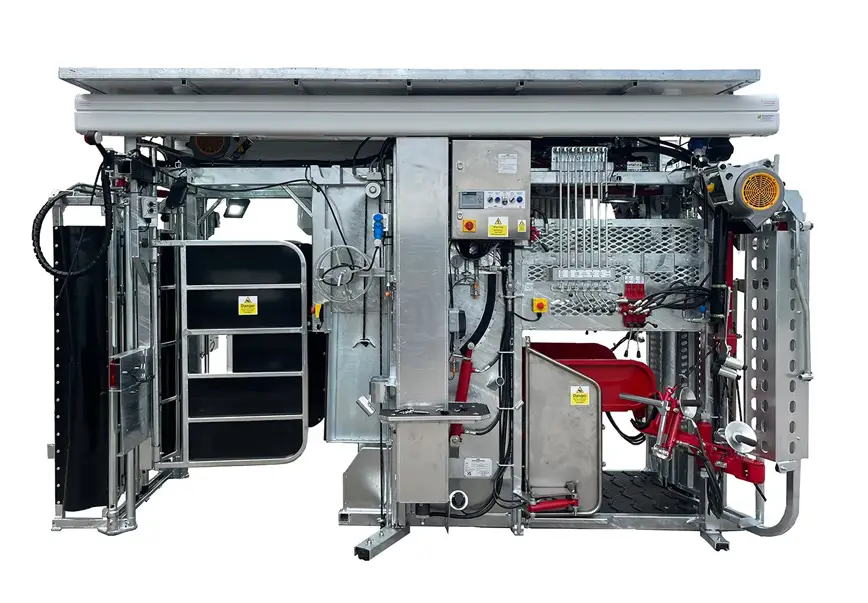

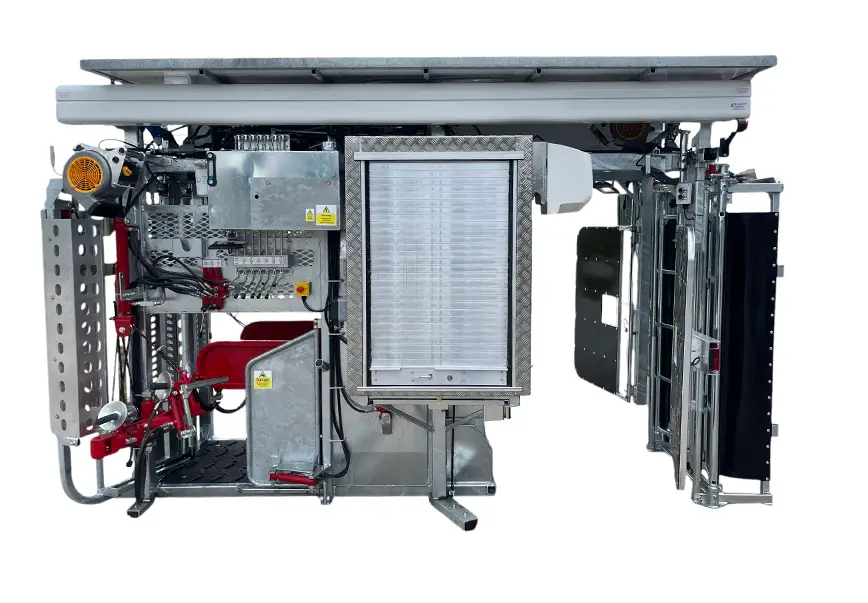

HTL Pro Plus Hooftrimming Crush


The HTL Pro Plus is the flagship of our range of hooftrimming crushes and is, quite simply, the most impressive and advanced crush on the market that will take your trimming business to a new level! Having advanced from the HTL Pro, the design and skilled engineering practises behind this crush make it stand out from its competitors. With all the benefits of the HTL Pro but with the extended rear frame and shuttle back door, this machine allows you to work seamlessly though large batches of cows with ease. The extended rear frame offers the perfect race entry point so that cow flow is second to none. The 10-function radio control allows the crush to be loaded from a safe distance and the addition of sequencing can engage numerous functions at the touch of a button so you can be trimming within seconds. The wide rubber bellyband on lift arms and the shuttle back door provide the optimum secure hold position for cattle of all sizes.

Features and Benefits
- Strong, ergonomically designed, galvanised steel frame construction
- Angled Texas front head gate
- Wide rubber bellyband on lift arms
- Hydraulic front leg clamps
- Back door shuttle with sequence valve and twin leg lifts
- Kick-plates
- Extended rear frame complete with manual side gates and rear race frame
- Lift system with check valves and flow dividers for an even and reliable lift
- 24V LED work lights
- 10-function radio control
Technical Specification
Maximum External Dimensions
- 4 metres long
- 1.9 metres wide
- 2.2 metres high (3 metres when lifted, with roof)
1.65 metres internal height / 765mm internal width
Weight = Approx. 2000kgs
Optional Extras

Sequencing

MP3 radio with speaker and aerial

Stabiliser bar for front leg clamps

Loading wheels and a steering dolly
Hydraulic adjusting rump chain

Roof & heavy duty, wind out awnings for both sides

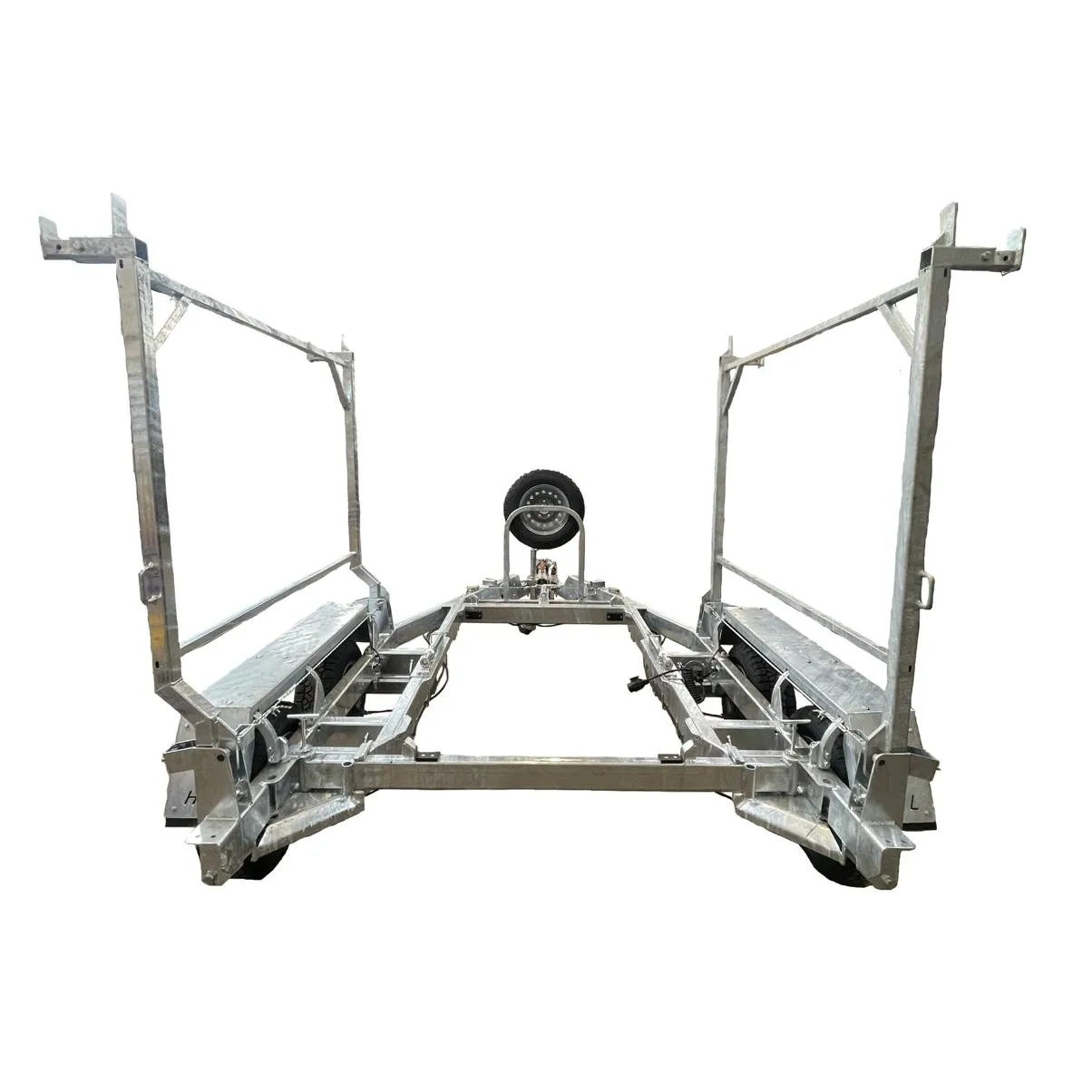

Bespoke HTL Pro U-shaped trailer with UK IVA

Hydraulic side gates with additional sequencing

Hydraulic rear sorting bi-fold doors

Large storage box with two roller shutters, insulated & thermostat-controlled glue storage, block storage, general storage and paper towel dispenser
“
“I have been using the HTL Pro Plus for almost 4 years and I am very satisfied with the quality of the box. I have treated 100,000 cows and relatively low maintenance; we are very satisfied with the service despite the fact we are in The Netherlands.”

Claw-Care Kroesen BV
The Netherlands
