Crushes and Handling

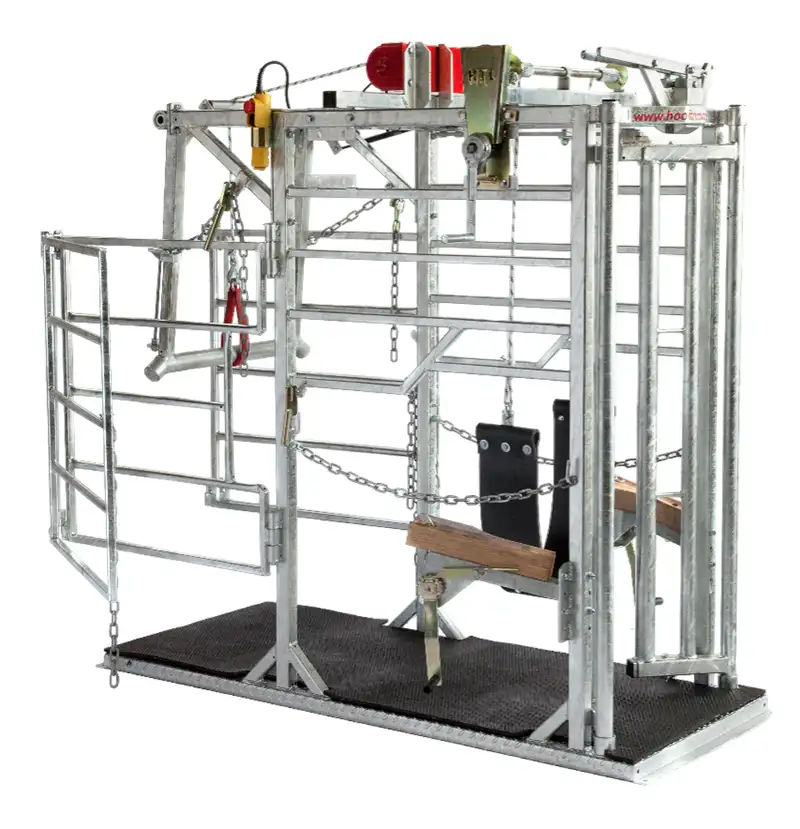

HTL Static Manual Hooftrimming Crush
The HTL Static Manual Hooftrimming Crush provides an economical, yet safe, solution for everyday hooftrimming needs. The strong, galvanised steel frame construction ensures cattle are safely restrained for routine, preventative or curative trimming. The adjustable, self-locking head gate enhances its ease of use and makes it suitable for handling cattle of any size. The adjustable height front leg blocks with tie-down system aids the trimming of front feet, whilst the rump chain secures the hind quarters whilst trimming the rear feet. The rump chain also adds to the versatility of this crush, making it suitable for AI or vet inspections. The wide rubber bellyband, which works off a braked winch, folds nicely around the cow and is located to ensure a comfortable, but secure, support position. The back leg is also lifted via a braked winch, adding to the overall safety for the operator.
Features and Benefits
- Strong, ergonomically designed, galvanised steel frame construction
- Adjustable self-locking head gate
- Adjustable height wooden front leg blocks with tie down system
- Galvanised steel tread-plate flooring
- Wide rubber bellyband
- Braked winches on rear leg lift and bellyband
Technical Specification
Maximum External Dimensions (With No Optional Extras)
- 2.1 metres long
- 1.2 metres wide
- 2.1 metres high
1.7 metres internal height / 720mm internal width
Weight = Approx. 350kgs
Optional Extras

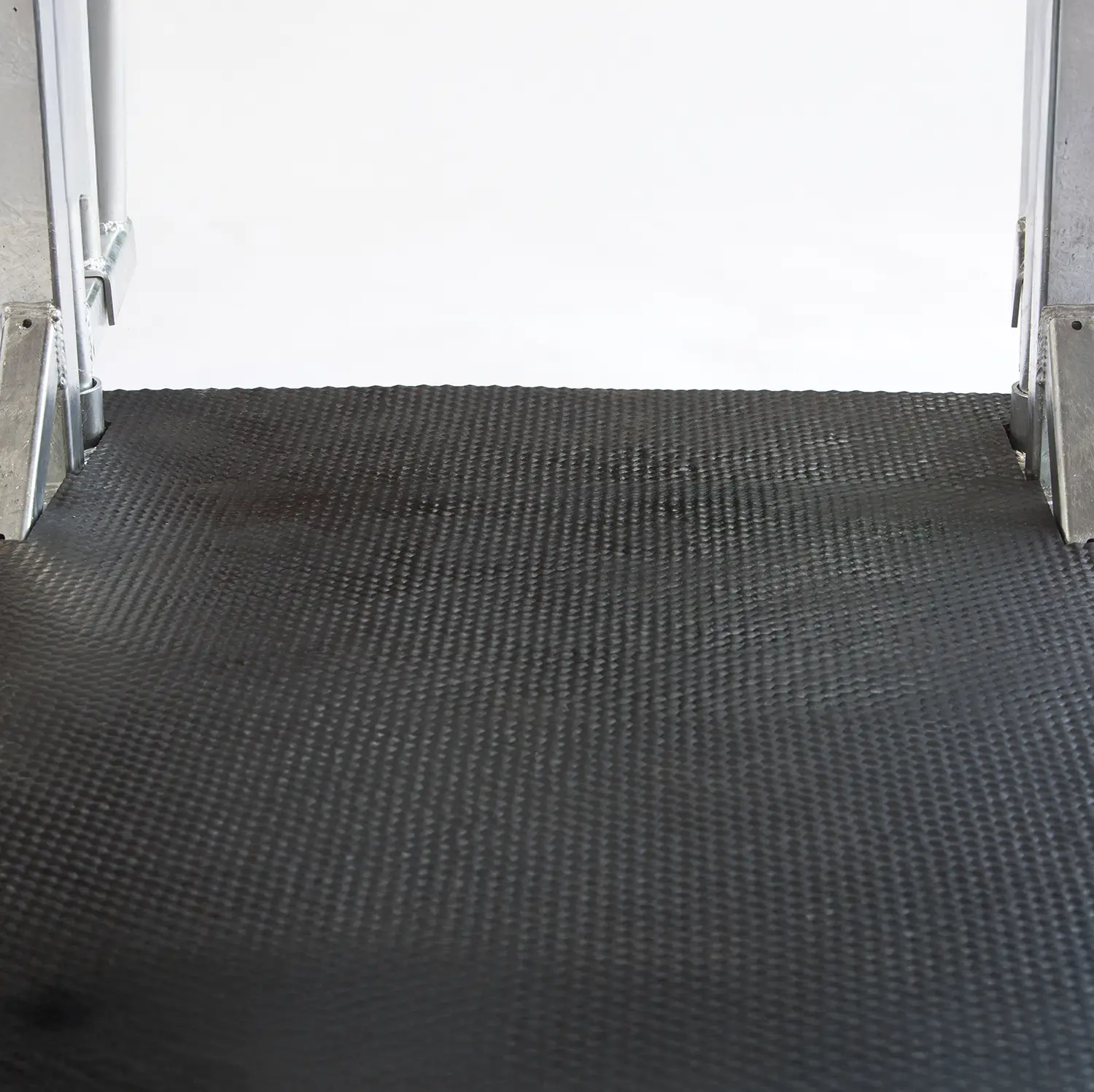

Non-Slip Rubber Flooring
Our bubble top rubber matting improves cattle comfort and stability, while also reducing noise.
Spring Assisted Rear Rump Bar
This rump bar features internal springs so hind legs are held securely, yet comfortably, reducing the risk of sudden movement when trimming with knives or grinders.

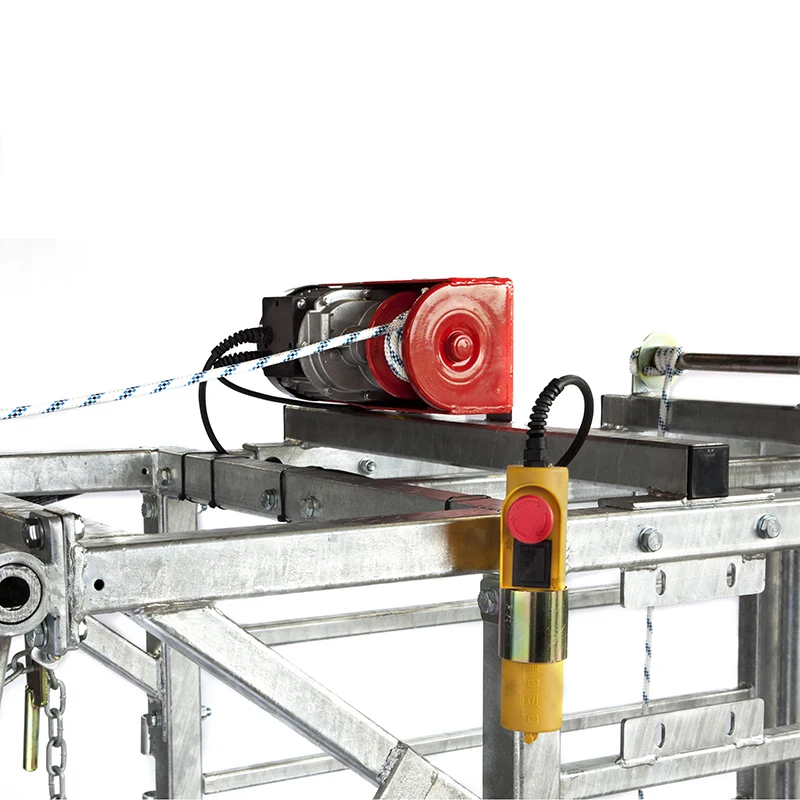

Electric Rear Leg Hoist
A tried and tested, heavy-duty electric winch to take the effort and back ache out of lifting hind legs. Comes with a remote control handset, rope and leg strap.
Two Section Galvanised Steel Rear Gates
A pair of two-sectioned, hinged gates provide an easier way of guiding cattle into the crush.

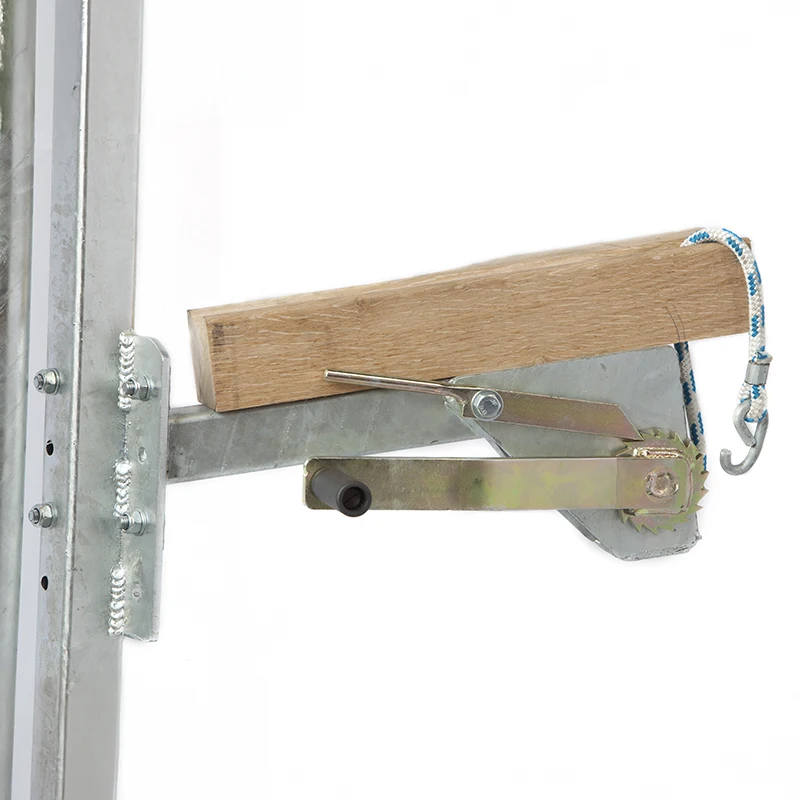

Front Leg Assembly with Hand Wind Ratchets
The well-designed, angled front leg blocks with hand wind ratchets enable you to safely lift front feet onto the block and tie down, reducing movement while trimming.
Side Opening Panels
Provide full access to the cow for vet inspection/procedures, clipping, mothering etc.

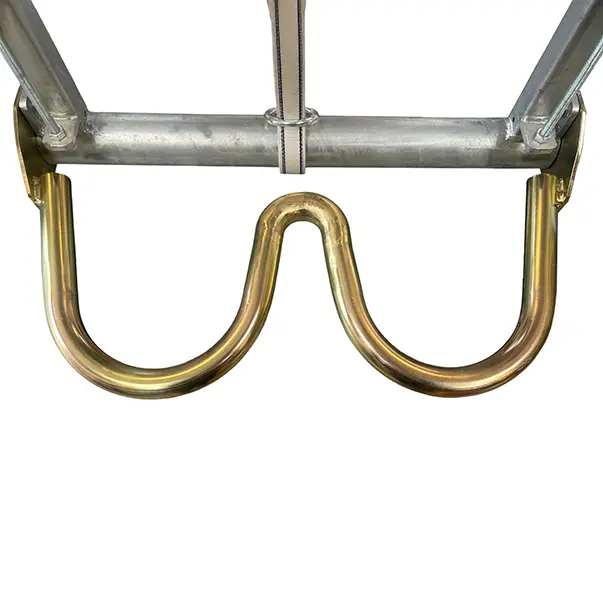

W-Bar
This W-shaped bar attaches onto the back bar. It reduces movement and stops kick back, ensuring user safety when trimming with a grinder.
